Trailmaster Wire Harness, 200E (EFI) For Go Karts
Trailmaster Wire Harness,200E (EFI) For Go Karts Item #: 1110179200G002 <
We try our best to offer the lowest prices in town
We know our products
Buy it from the best
Restrictions apply* E.G. home delivery for the golf carts are extra and Fuel surcharge applies to far away states.
The TrailMaster Blazer 200EX is an upgrade from our popular Blazer 150X, now with a bigger 169cc GY6 engine and equipped with EFI. With the fuel injection system, users don’t have to worry about issues starting in cold weather or at high altitude and furthermore, you don’t have to worry about adjusting or replacing carburetors after periods of inactivity with the unit.
Comes standard with a LED light bar, 4MM windshield, nitrogen gas adjustable front and rear shock, racing seat belt, digital speedometer/odometer, aluminum side mirrors, Turn signals, and a sporting steering wheel.
The TrailMaster Blazer 200EX is an upgrade from our popular Blazer 150X, now with a bigger 169cc GY6 engine equipped with EFI. With fuel injection, users dont need to worry about starting in cold weather or at high altitudes; Furthermore, users dont need to fix or replace carburetors after periods of inactivity with the unit.
This model comes in black, blue, white and red colors.

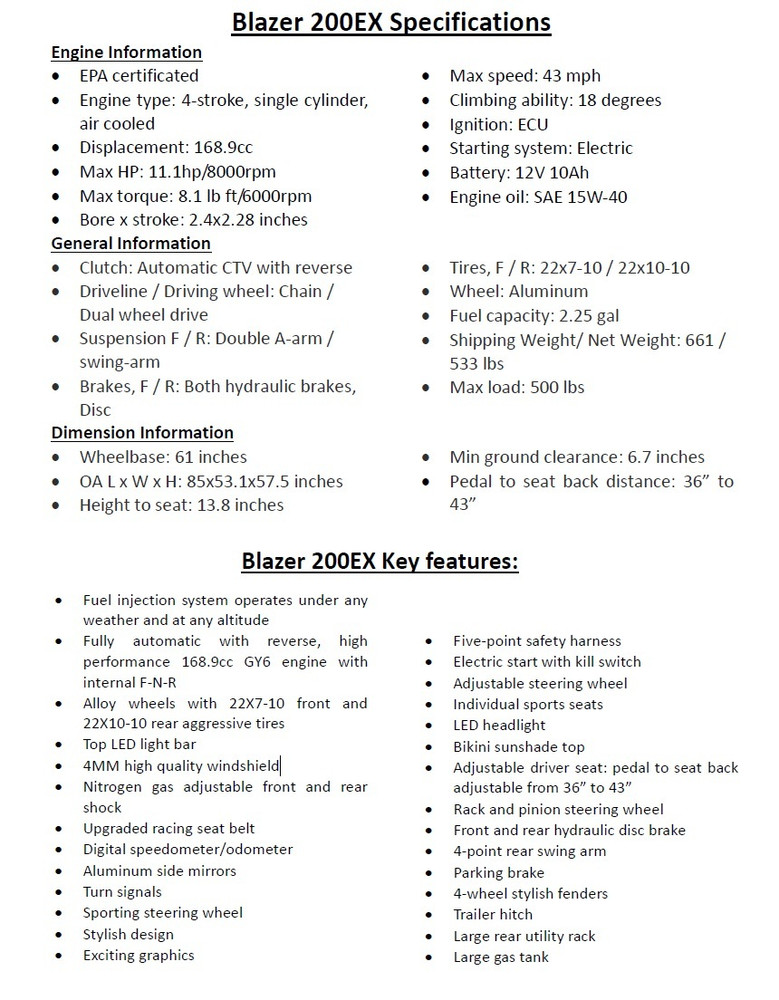

Engine Information
• EPA certificated
• Engine type: 4-stroke, single cylinder, air cooled
• Displacement: 168.9cc
• Max HP: 11.1hp/8000rpm
• Max torque: 8.1 lb ft/6000rpm
• Bore x stroke: 2.4x2.28 inches
• Max speed: 43 mph
• Climbing ability: 18 degrees
• Ignition: ECU
• Starting system: Electric
• Battery: 12V 10Ah
• Engine oil: SAE 15W-40
General Information
• Clutch: Automatic CTV with reverse
• Driveline / Driving wheel: Chain / Dual wheel drive
• Suspension F / R: Double A-arm / swing-arm
• Brakes, F / R: Both hydraulic brakes, Disc
• Tires, F / R: 22x7-10 / 22x10-10
• Wheel: Aluminum
• Fuel capacity: 2.25 gal
• Shipping Weight/ Net Weight: 661 / 533 lbs - 299 /241 kg
• Max load: 500 lbs
Dimension Information
• Wheelbase: 61 inches
• Length×Width×Height(Inches): 85x53.1x57.5 / (mm):2159x1348x1460
• Height to seat: 13.8 inches
• Min ground clearance: 6.7 inches
• Pedal to seat back distance: 36” to 43”
Key features:
• Fuel injection system operates under any weather and at any altitude
• Fully automatic with reverse, high performance 168.9cc GY6 engine with internal F-N-R
• Alloy wheels with 22X7-10 front and 22X10-10 rear aggressive tires
• Top LED light bar
• 4MM high quality windshield
• Nitrogen gas adjustable front and rear shock
• Upgraded racing seat belt
• Digital speedometer/odometer
• Aluminum side mirrors
• Turn signals
• Sporting steering wheel
• Stylish design
• Exciting graphics
• Five-point safety harness
• Electric start with kill switch
• Adjustable steering wheel
• Individual sports seats
• LED headlight
• Bikini sunshade top
• Adjustable driver seat: pedal to seat back adjustable from 36” to 43”
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• 4-point rear swing arm
• Parking brake
• 4-wheel stylish fenders
• Trailer hitch
• Large rear utility rack
• Large gas tank www.bvpowersports.
Youth/Adult size Kart | |||||||||||||||||||
Model | Driver group* | Max. speed | Max. Load (Lb) | Engine | Tire and Wheel | MainFeatures | |||||||||||||
Driver age* | Fit height | Power | EFI version available |
Front | Rear | Aluminum Rim |
seatbelt | Hydraulic brake (F/R) |
2/4 seats | Plastic Hood/ Fender |
Side Mirror |
Windshied | LED Light bar | Turn lights | Brake light | Rear Suspension |
|||
200 XRS | 14 and up | 6'2'' | 40mph | 500 | 11HP | 20x7-8 | 22x10-10 | 5pt | F/R | 2 | F | x | solid axle | ||||||
200 XRS EFI | 14 and up | 6'2'' | 40mph | 500 | 11HP | x | 20x7-8 | 22x10-10 | 5pt | F/R | 2 | F | x | solid axle | |||||
200 XRX | 14 and up | 6'2'' | 40mph | 500 | 11HP | 20x7-8 | 22x10-10 | x | 5pt | F/R | 2 | F | x | x | x | x | x | solid axle | |
200 XRX EFI | 14 and up | 6'2'' | 40mph | 500 | 11HP | x | 20x7-8 | 22x10-10 | x | 5pt | F/R | 2 | F | x | x | x | x | x | solid axle |
Blazer 200 | 14 and up | 6'2'' | 40mph | 500 | 11HP | 20x7-8 | 21x10-10 | 5pt | F/R | 2 | H/F | x | solid axle | ||||||
Blazer 200X | 14 and up | 6'2'' | 40mph | 500 | 11HP | 20x7-8 | 22x10-10 | x | 5pt | F/R | 2 | H/F | x | x | x | x | x | solid axle | |
Blazer 200X EFI | 14 and up | 6'2'' | 40mph | 500 | 11HP | x | 20x7-8 | 22x10-10 | x | 5pt | F/R | 2 | H/F | x | x | x | x | x | solid axle |
Blazer4 200X | 14 and up | 6'2'' | 38mph | 800 | 11HP | 20x7-8 | 21x10-10 | 5pt | F/R | 4 | H/F | x | x | x | solid axle | ||||
Blazer4 200X EFI | 14 and up | 6'2'' | 38mph | 800 | 11HP | x | 20x7-8 | 21x10-10 | 5pt | F/R | 4 | H/F | x | x | x | solid axle | |||
Cheetah 8 | 14 and up | 5'8'' | 32mph | 500 | 7.5HP | 18x7-8 | 18x7-8 | 4pt | R | 2 | H/F | double ball joints | |||||||
Cheetah 200 | 14 and up | 6' | 38mph | 500 | 11HP | 22x7-10 | 22x10-10 | 4pt | F/R | 2 | H/F | x | double ball joints | ||||||
Cheetah 200 EFI | 14 and up | 6' | 38mph | 500 | 11HP | x | 22x7-10 | 22x10-10 | 4pt | F/R | 2 | H/F | x | double ball joints | |||||
Cheetah 200X | 14 and up | 6' | 38mph | 500 | 11HP | 22x7-10 | 22x10-10 | x | 4pt | F/R | 2 | H/F | x | x | x | x | double ball joints | ||
Cheetah 200X EFI | 14 and up | 6' | 38mph | 500 | 11HP | x | 22x7-10 | 22x10-10 | x | 4pt | F/R | 2 | H/F | x | x | x | x | double ball joints | |
300E XRS | 16 and up | 6'2'' | 50mph | 500 | 18HP | only EFI | 20x7-8 | 22x10-10 | 5pt | F/R | 2 | F | solid axle | ||||||
300E XRS4 | 16 and up | 6'2'' | 50mph | 800 | 18HP | only EFI | 20x7-8 | 21x10-10 | 5pt | F/R | 4 | F | solid axle | ||||||
300E XRX | 16 and up | 6'2'' | 50mph | 500 | 18HP | only EFI | 20x7-8 | 22x10-10 | x | 5pt | F/R | 2 | F | x | x | x | x | x | CV Joint shaft |
