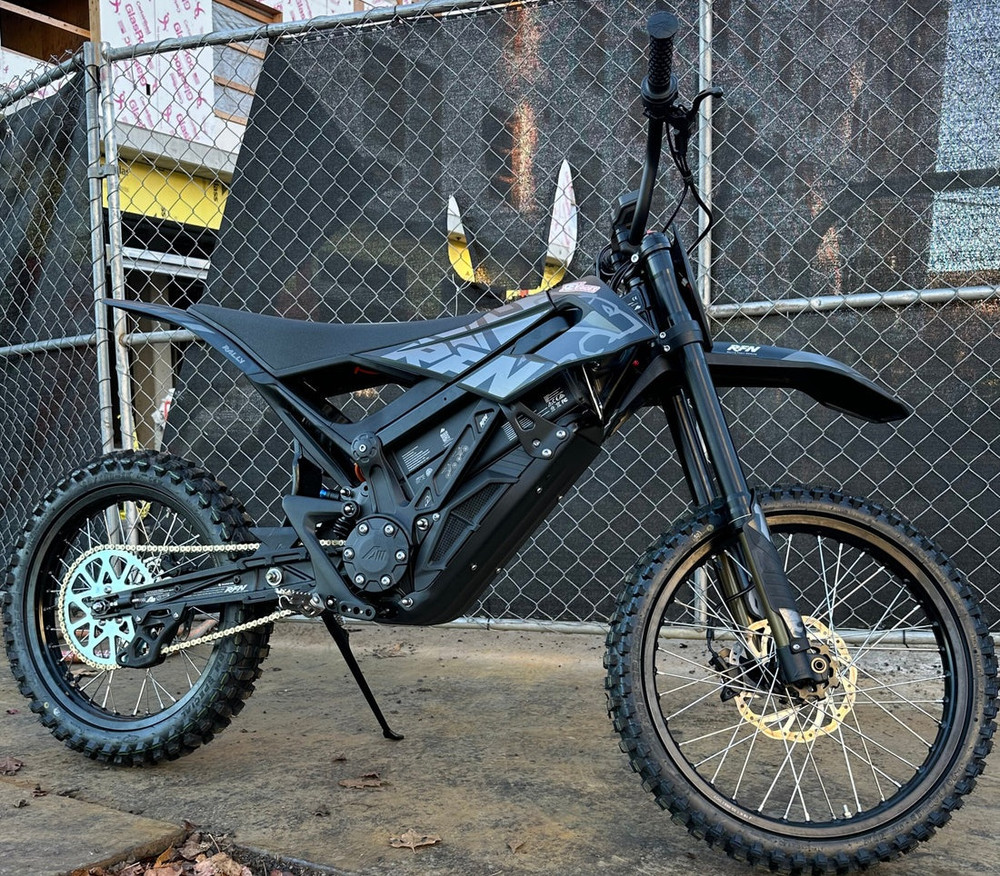

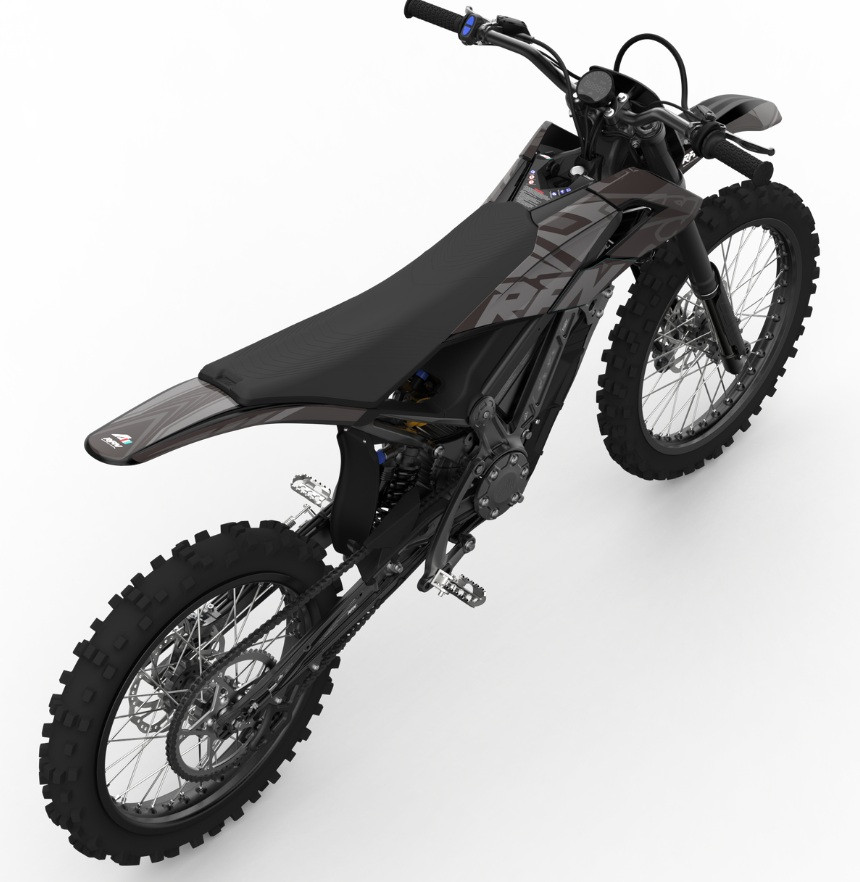

Introducing the Apollo RFN Ares Rally Pro Electric Dirt Bike—the pinnacle of Apollo's innovation in electric off-road vehicles. Engineered to excel in rugged terrain, the RFN Ares embodies high-performance capabilities with a top speed of 46 mph and an impressive range of up to 100 miles, powered by a robust 12.5 kW motor. This 2024 model showcases cutting-edge technology, including the distinctive rectangle display, enhancing the rider's experience with advanced features and precision instrumentation. The RFN Ares redefines the electric dirt bike landscape, combining exhilarating performance with eco-conscious engineering for a thrilling and sustainable riding adventure.
TECHNICAL SPECS
POWER
11-58T Max Torque 305 N·m (Max Torque of rear wheel: 305 / N-m Top speed: 75 km/h)
Battery
74V, LG Premium 21700 lithium cells, removable, can be charged on a bike or separately.
Brakes
Front and Rear 4-piston hydraulic disc, 210mm
Charging
2-3h with Quick Charge Function
Controller
Sine wave, Best-in-class power density, and state-of-the-art motor control algorithms.
Electric motor
Air-cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420
Drivetrain
Electric motor: Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chains with DX
Sprocket: 13T-58T
Rated power: 5 kW
Peak power: 12.5 kW**
Max Torque of motor: 58 N·m
Max Torque of rear wheel: 305 N·m
Dimensions
Fork angle: 340mm - 13.39''
Offset: 15mm in triple clamps, 45mm in forks.
Seat height: 860mm - 33.86''
Trail: 111mm - 4.37''
Wheelbase: 1330mm - 52.36''
Fenders & Bodywork
Material: PP/ABS plastic
Frame
Build: 6082 aluminum extruded, forged, CNC machined, and steel frame.
Front Suspension
Upside Down, 200mm travel, Fully adjustable
Handlebar
6061 aluminum, 760mm length
Rear Suspension
Mono-Shock, 74mm travel, adjustable
Regulatory
Certificate: CE
Ride modes
Mode 1: Tortoise mode: The ultimate mode of energy conservation exploration. Limited to 25 km/h with 3.5 hours battery range.
Mode 2: Rabbit mode: Enduro or active trail riding. 1-2 h riding time.
Mode 3: Rocket mode: Track and race mode, maximal torque and speed, riding time up to 9Sec.
Mode 4: Reverse mode: Limited to 9 km/h.
Speed & Range
Range: 160 Km (Test data Load: 75 Kg, 20 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure)
Top speed: 65km/h
Weight
N.W of Battery: 15 kg
N.W of the whole bike: 68 kg
Max load: 120kg
Wheels & Tires
Hubs: Forged and CNC aluminum RFN hubs with 20mm axle.
Rims: F 19"/ R 18" (Motorcycle standard) re-inforced, triple chamber, 7050 aluminum.
Tires: F: CST CM721 70/100-19 off-road, R: CST CM722 90/100-18 off-road
