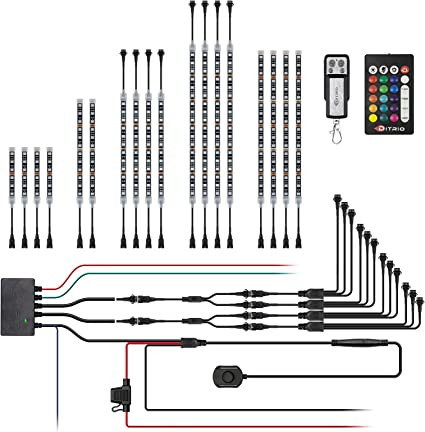

DITRIO 18pcs Underglow RGB LED Strip Light Kit DC 12V with Turn Signal and Blinking Brake Light Features for Motorcycle Trikes ATVs UTVs, M18r-TK
About this item
- Sophisticated Design: This LED strip kit combines 3 basic functions that make it safer for you to ride at night – optimum lighting, additional brake light, and turn signal features.
- Turn Signal: The control box divides LED strips into 2 zones – left and right. When you press the turn signal button, all strips on the same side will blink in amber, making your changes more noticeable.
- Maximum Brightness: Maximizing brightness is a priority for the design of this LED strip kit M18r-T, which includes choosing premium materials for LED strips and assuring optimum power supply from the circuit.
- Output for Larger Bikes: The control box has a bigger circuit board, which has at least 2X capacity than the regular one. It provides sufficient power supply to more LED strips and you won’t see the brightness decreases noticeably.
- Brake Light: All LED strip lights will go red as an additional warning signal, when you squeeze the brake, reacting instantly, and go back to the previous setting once you release brakes.
Still not convinced that this LED strip kit M18r-T is a good pick for your bike?
Want to know more before making a buying decision?
Then check out these functions and features.
- LED strips are made from quality materials, and with a daisy-chain design
- The circuit board is designed for a larger output and built with protective features
SMD RGB 5050 LEDs with Gold Bonding Wire
Strips of 60 LEDs per meter, output up to 1,000 lumens per meter
- Brightest among SMD RGB LEDs and give off more light per watt
- Offer a light output 3 times that of the most cost effective 3528 LEDs
- Top quality bonding wire among wires in the high-end package field
- With an electrical conductivity 30% higher than the cost-effective material copper
- Produce 3.55% more light than those encapsulated with copper
Daisy-Chain LED Strips
Reduce bulkiness, and easier to organize wires

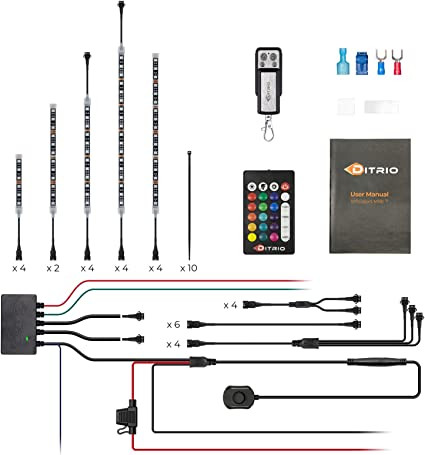

- The package comes with daisy-chain LED strings of 2 sizes, and 4 pieces for each size
- With these strips, you don't have to connect all of them from the control box
- This may give you a cleaner look, and may save time because you may not have to take the tank off
MOSFETs with Large Capacity
Fundamental for large output to maximize brightness
- The circuit board is built with 6 MOSFETs that has large output – nominal current 7A each
- Even only one of these MOSFETs has at least 3X of output, compared with the total maximum output of some circuit boards that has MOSFETs that are as small as toothpicks
- This component and its capacity are fundamental if you have a large bike – particularly a trike - and brightness and reliability are your priorities
Self-Protective Mechanisms
3 Built-in features against abnormal conditions
- You won't damage anything in case you reverse the connection of the red and the black wires for power supply
- The circuit detects the current by 2 resistors, and it cuts off automatically when a short circuit occurs, and goes back to normal after the short circuit is removed
- The outer box has a LED indicator. It provides visual indication for working status – slow blinking for normal working, fast blinking for short circuit warning, and remains off for reverse connection
